PRECISION MEMBRANE FILTRATION & ULTRAPURE WATER COMPONENTS

Precision Membrane Filtration & Ultrapure Water Components

Factory-direct engineering from Hangzhou, China. High-pressure FRP membrane housings, sanitary CEDI ultrapure water stacks, and mPES hollow fiber UF columns for global OEMs and EPC contractors. Zero fixed markups — volume factory pricing on request.

ChP 2025 Compliant Endotoxin < 0.25 EU/ml

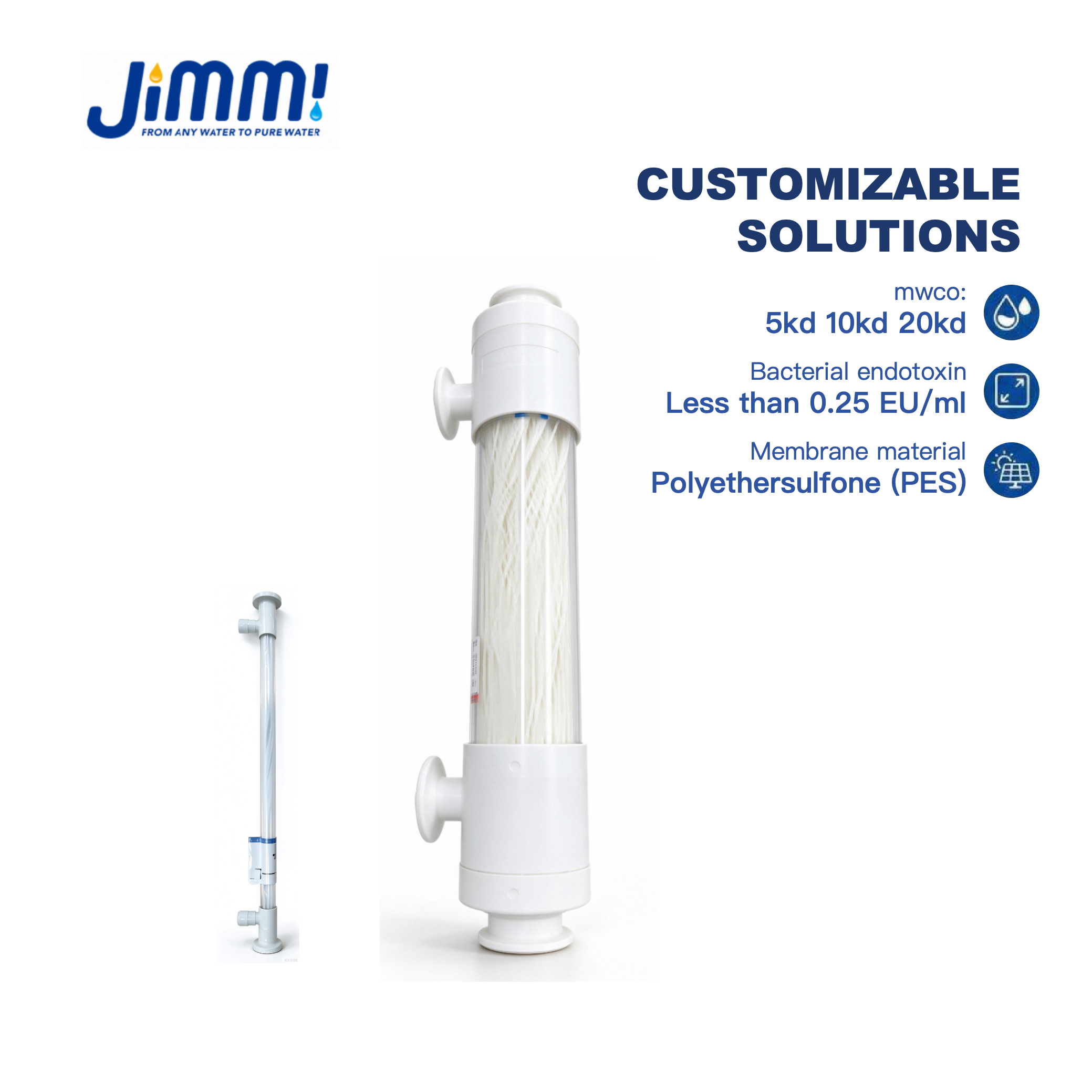

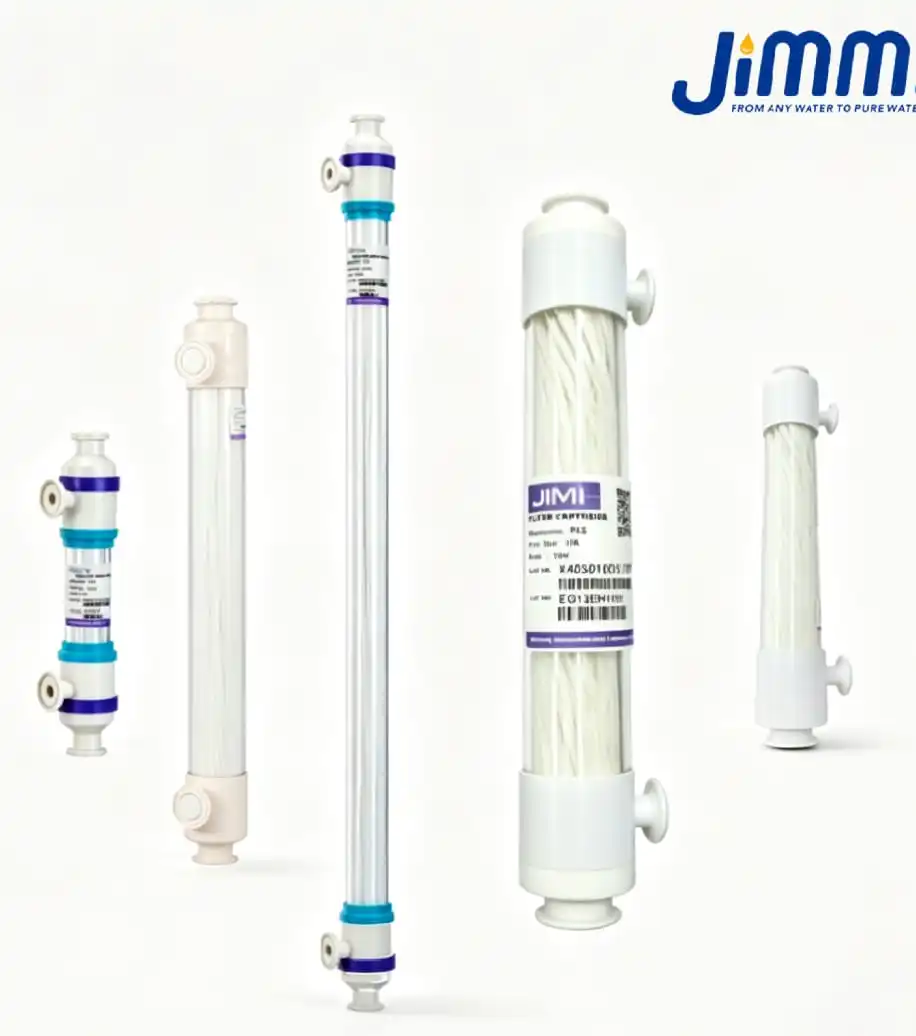

mPES Hollow Fiber UF Membrane Column
01 · BIOPHARMA & TFF

mPES Hollow Fiber UF Membrane Column

  • Pore Size / MWCO: 1 kDa to 750 kDa (Modified PES)
  • Series: S (12mm), M (29mm), L (65mm), X (102mm), U (168mm)
  • Filtration Area: 0.02 m² to 32.0 m² (Open Flow Channel)
  • Connections: 1/2" to 2" Sanitary Tri-Clamp Ports
  • Chemical Resistance: 0.5M NaOH · Autoclave Sterilizable
Request Volume Quote → Download Technical Specs
Plug & Play Lab Unit 18.2 MΩ·cm Ultrapure

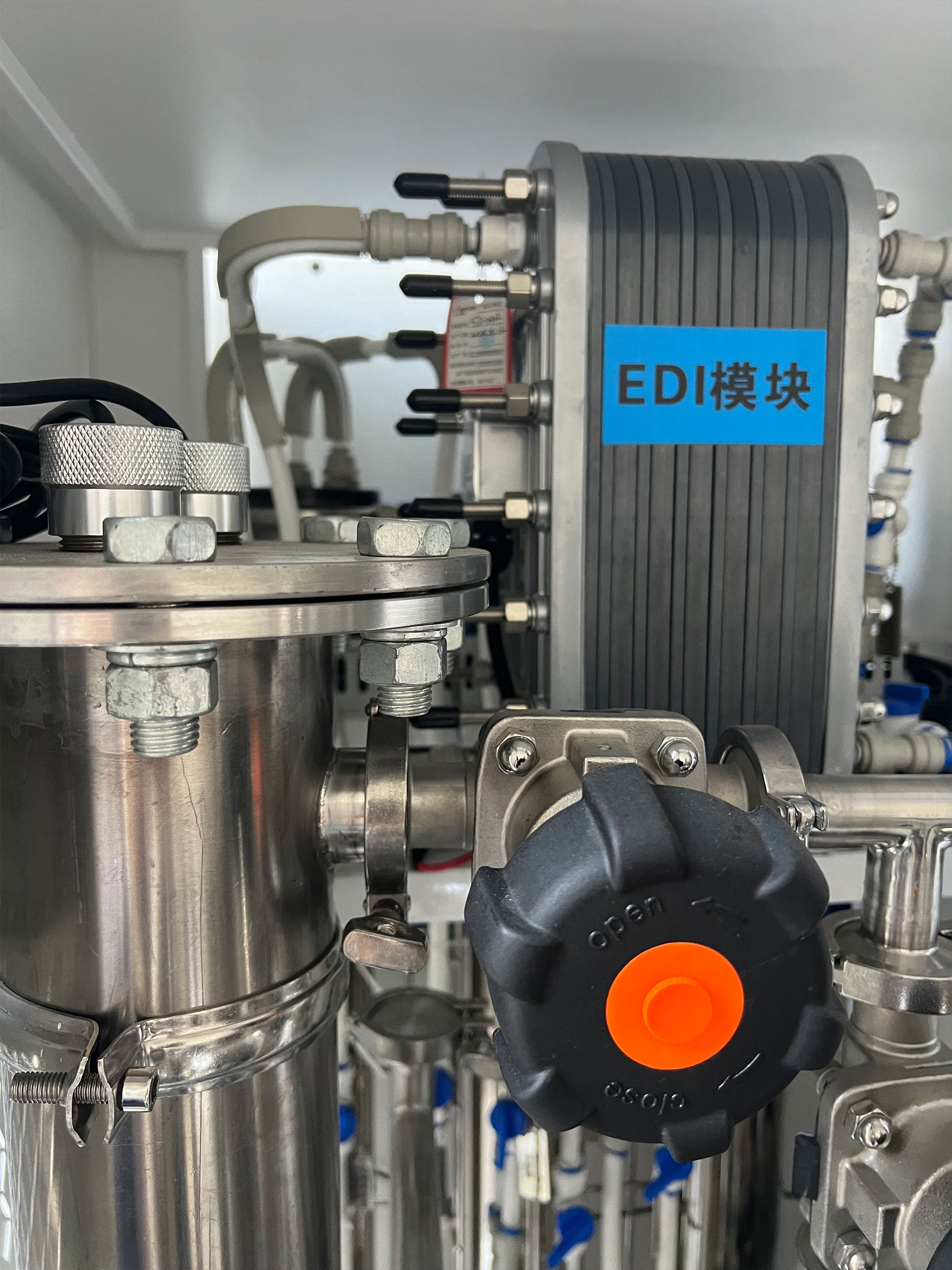

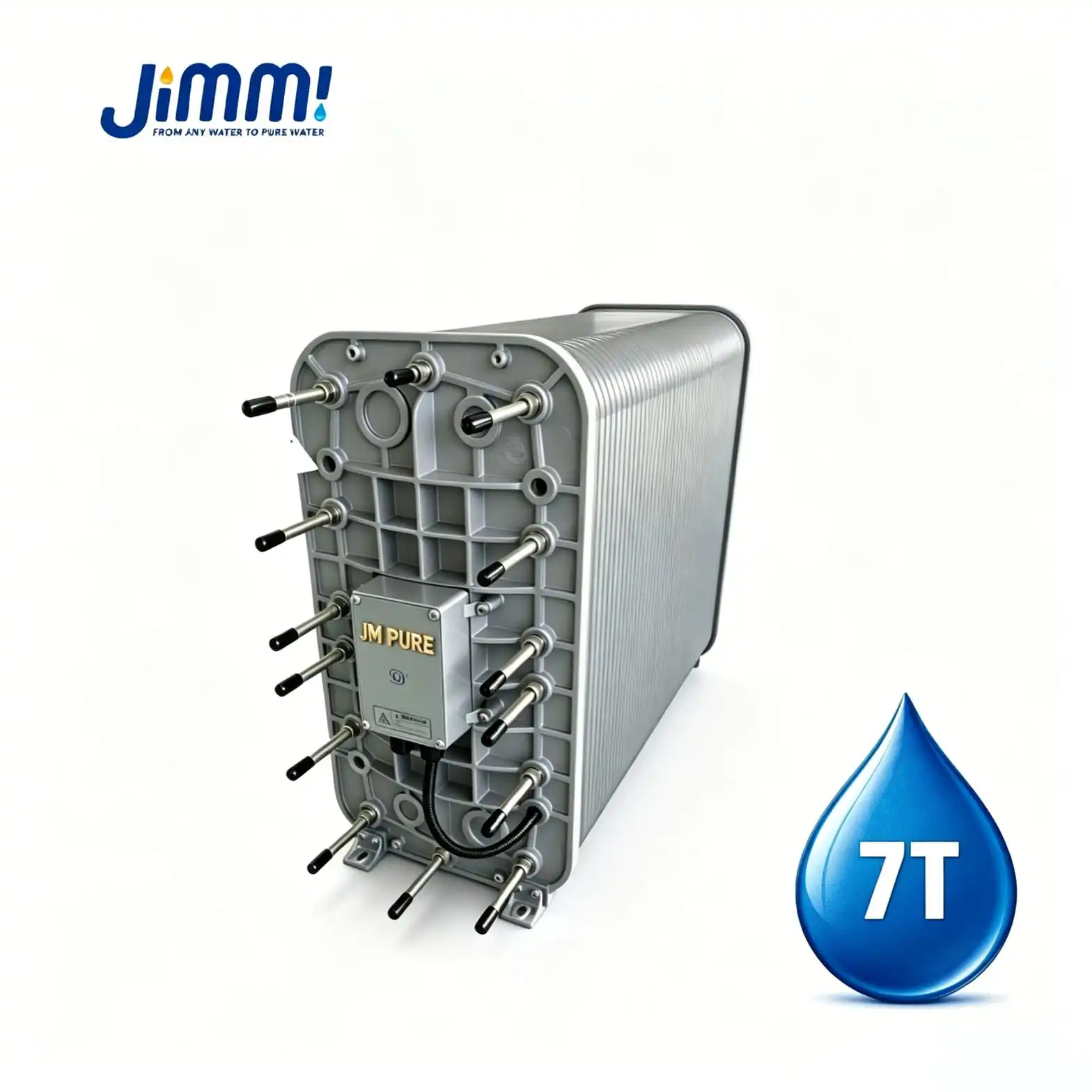

EDI-MINI Stack with Integrated Power Supply
02 · CONTINUOUS ELECTRODEIONIZATION

EDI-MINI Stack with Integrated Power Supply

  • Output Purity: Resistivity ≥ 15 ~ 18.2 MΩ·cm (Type 1 UPW)
  • Flow Capacity: JMS-30L to 300L/h (Mini) | Up to 8 m³/h (General)
  • Recovery Rate: 85% ~ 97% | Zero Acid & Caustic Regeneration
  • Integrated Power: Built-in High-Frequency DC Regulated Supply
  • Gross Weight: 9 ~ 19 kg (Compact Wooden Crate Packaging)
Request Volume Quote → Download Technical Specs
300 ~ 1500 PSI Range 2507 Duplex Ports

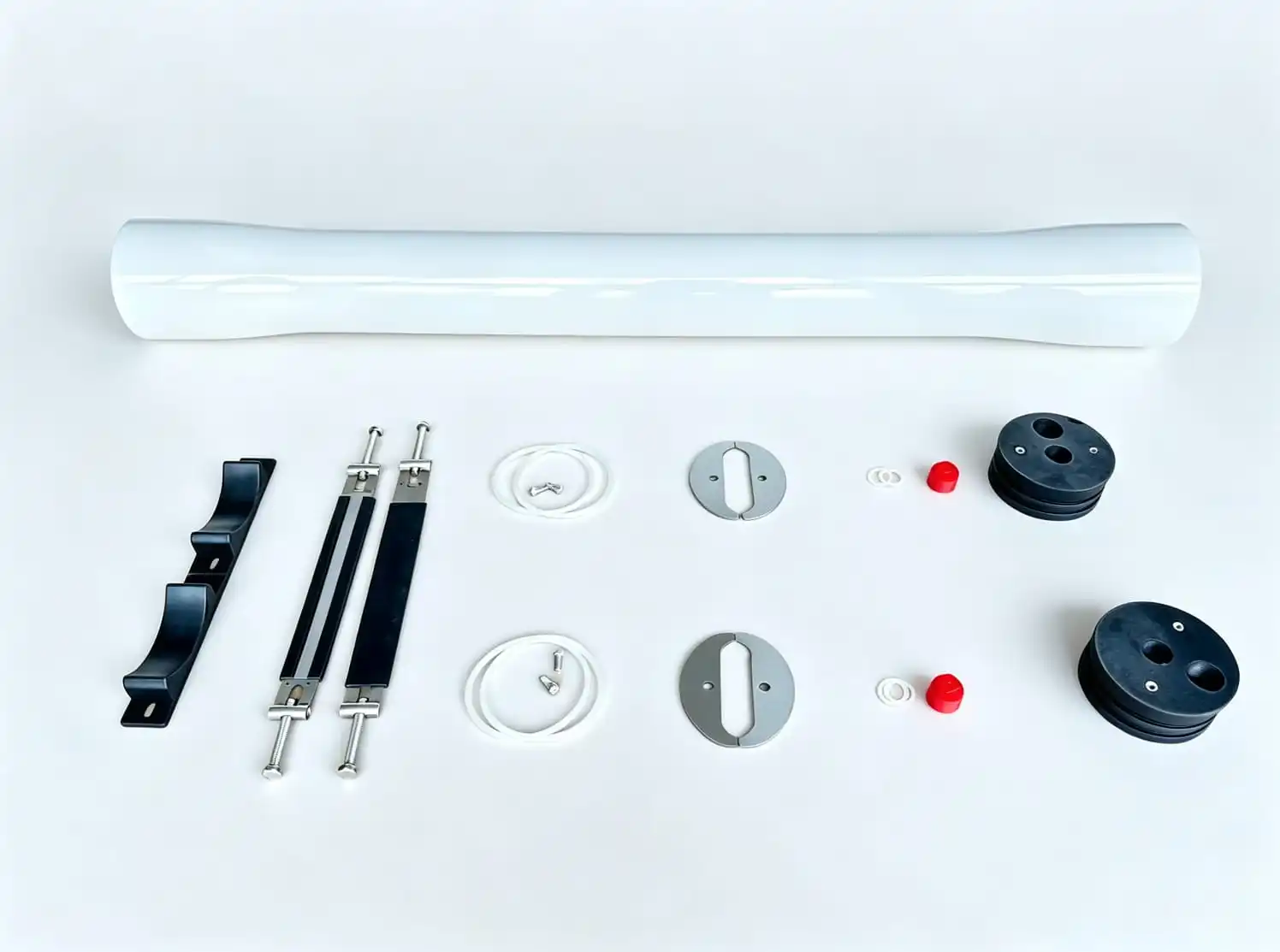

8040 FRP RO Membrane Pressure Vessel
03 · HIGH-PRESSURE PRESSURE VESSELS

8040 FRP RO Membrane Pressure Vessel

  • Pressure Ratings: 300, 450, 600, 800, 1000, 1200, 1500 PSI
  • Element Capacity: 1 to 7 Elements (Lengths from 1.4m to 7.6m)
  • Port Configurations: End Port & Side Port with Multi-Porting
  • Wetted Materials: 316L SS & 2205/2507 Super Duplex Stainless Steel
  • Precision Bore: Mirror-Polished Inner Bore for Easy Membrane Loading
Request Volume Quote → Download Technical Specs

✓ FACTORY-DIRECT SUPPLY · HANGZHOU FACILITY

✓ 100% PRESSURE & INTEGRITY TESTED

✓ PURE VOLUME QUOTING · ZERO FIXED SURCHARGES

+86 134 5674 8665 zhejiang@jimmiglobal.com

SUPPLIER PERFORMANCE

Verified factory metrics, not marketing claims

Operating data from our Hangzhou production base and export order records.

  • 100%

    On-time dispatch

  • 100%

    On-time dispatch

    Zero-Delay Delivery Across Contracts

  • 60.0%

    Repeat order rate

    +184% vs. Industry Baseline (Verified Reorders)

  • 0.0%

    Dispute rate

    100% Clean Trade Assurance Record

  • ≤1 Hour

    Inquiry response time

    Direct Senior Fluid Engineer Consultation

  • RMB 40M

    Registered capital

    Alibaba Onsite Checked Verified Entity

Engineered For Global Infrastructure & High-Tech Industry

Specialized Solutions for Two Critical Buyer Sectors

Whether you are an EPC contractor requiring ASTM/USP-grade ultrapure separation for microelectronics and pharma, or a municipal project director needing resilient off-grid seawater desalination across Africa and island resorts, JIMMI provides engineered systems built for zero-failure operations.

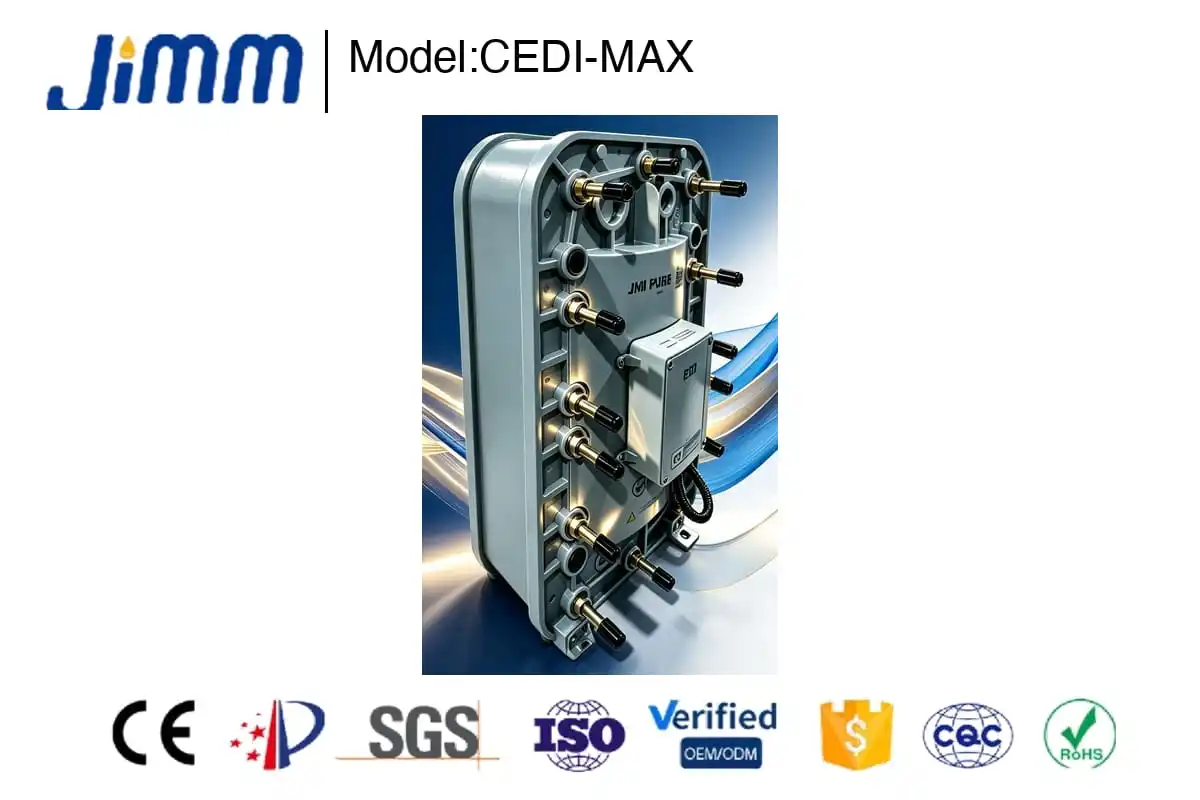

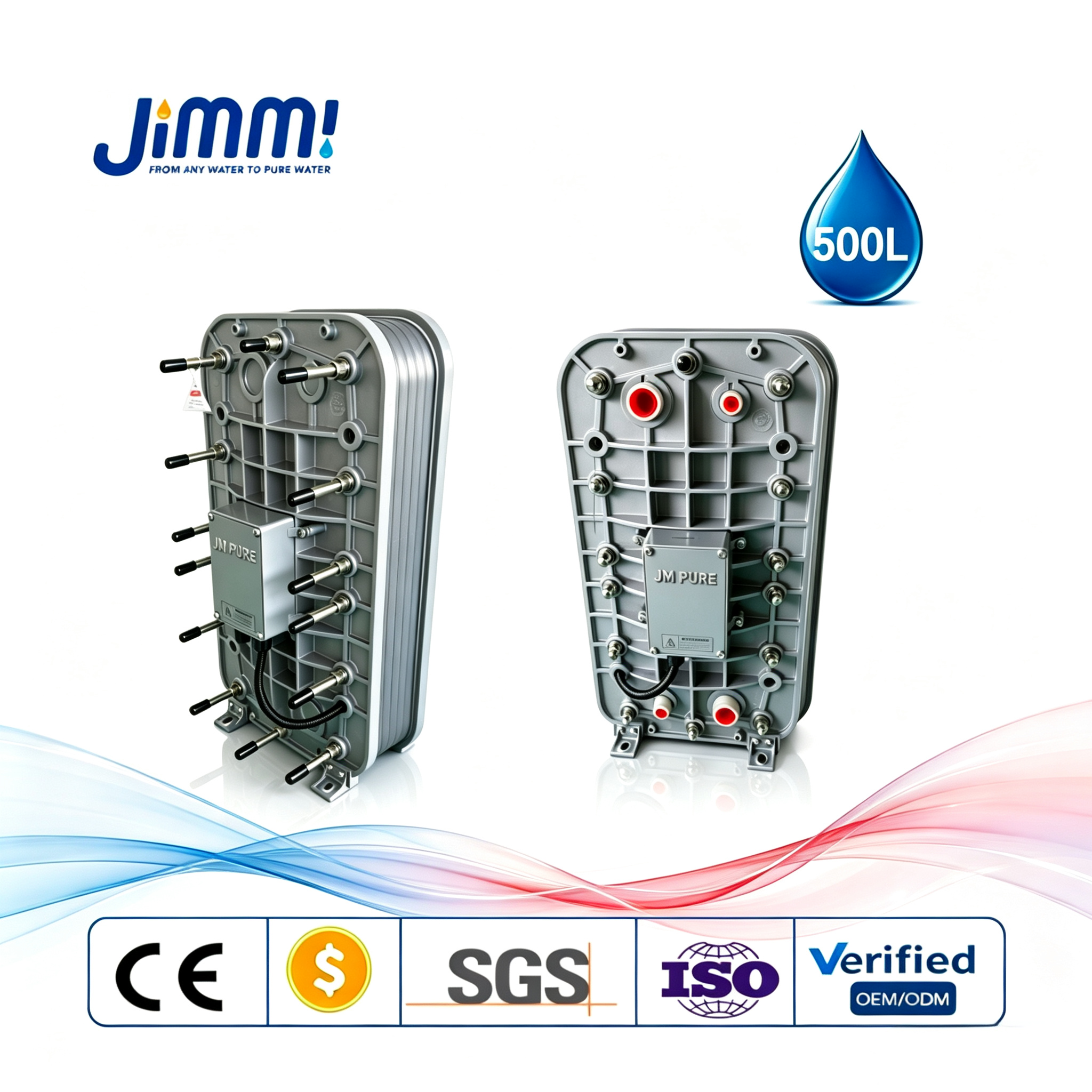

Pharmaceutical and Semiconductor Ultrapure Water Equipment
High-Precision Industrial

Semiconductor, Biopharma & Ultrapure Clean-Tech

EU & US High-Precision Industrial Procurement · Pharmaceutical GMP · Chip Fabrication

Designed for mission-critical cleanrooms, wafer fabrication rinsing, and pharmaceutical Water for Injection (WFI). Features electropolished 316L stainless steel, sub-ppb gas removal, and tight molecular weight cutoffs.

❌ Common Industry Pain:
Chemical scavengers contaminate ultra-pure water; piping dead-legs cultivate bacterial biofilms and fail inspections.
✅ JIMMI Engineering Solution:

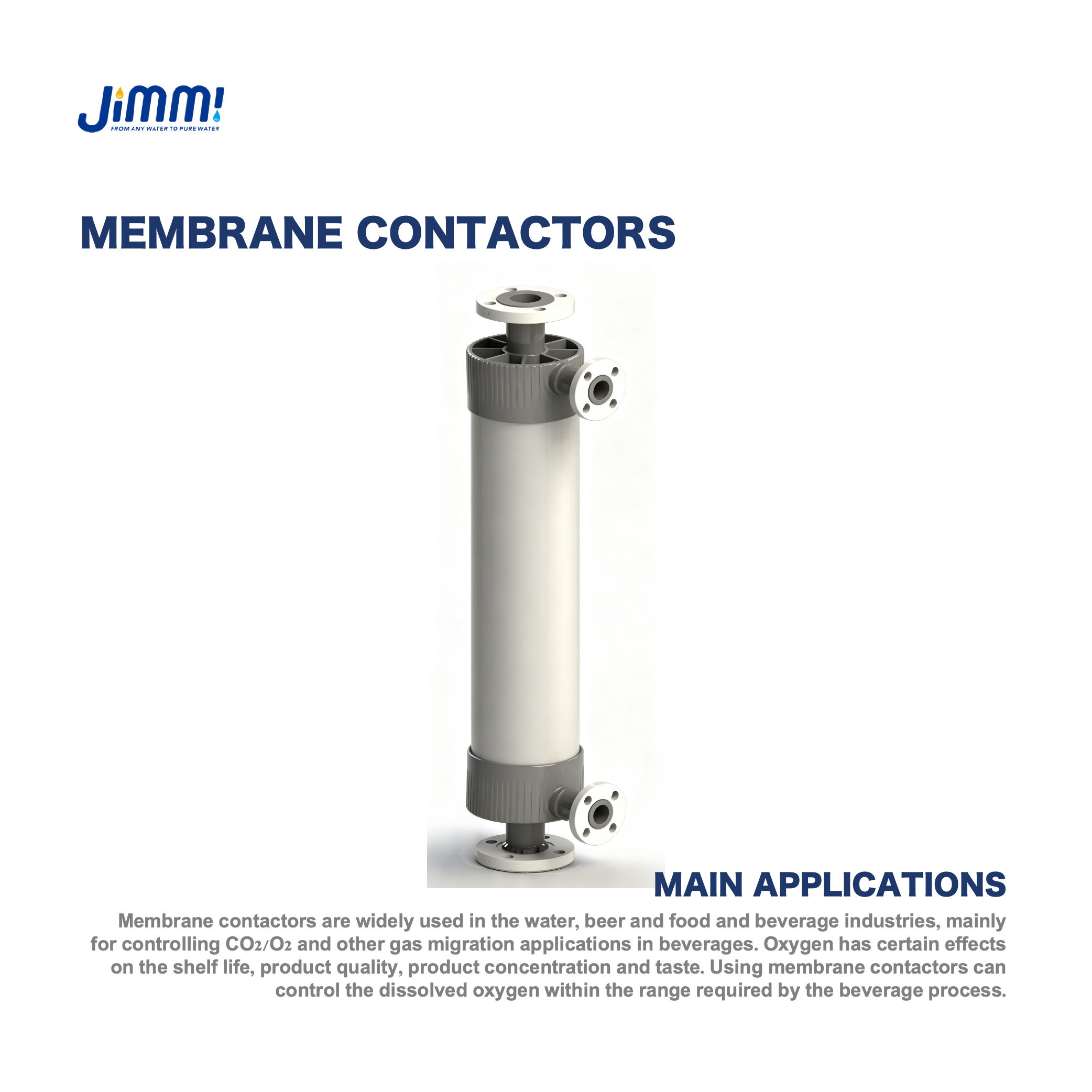

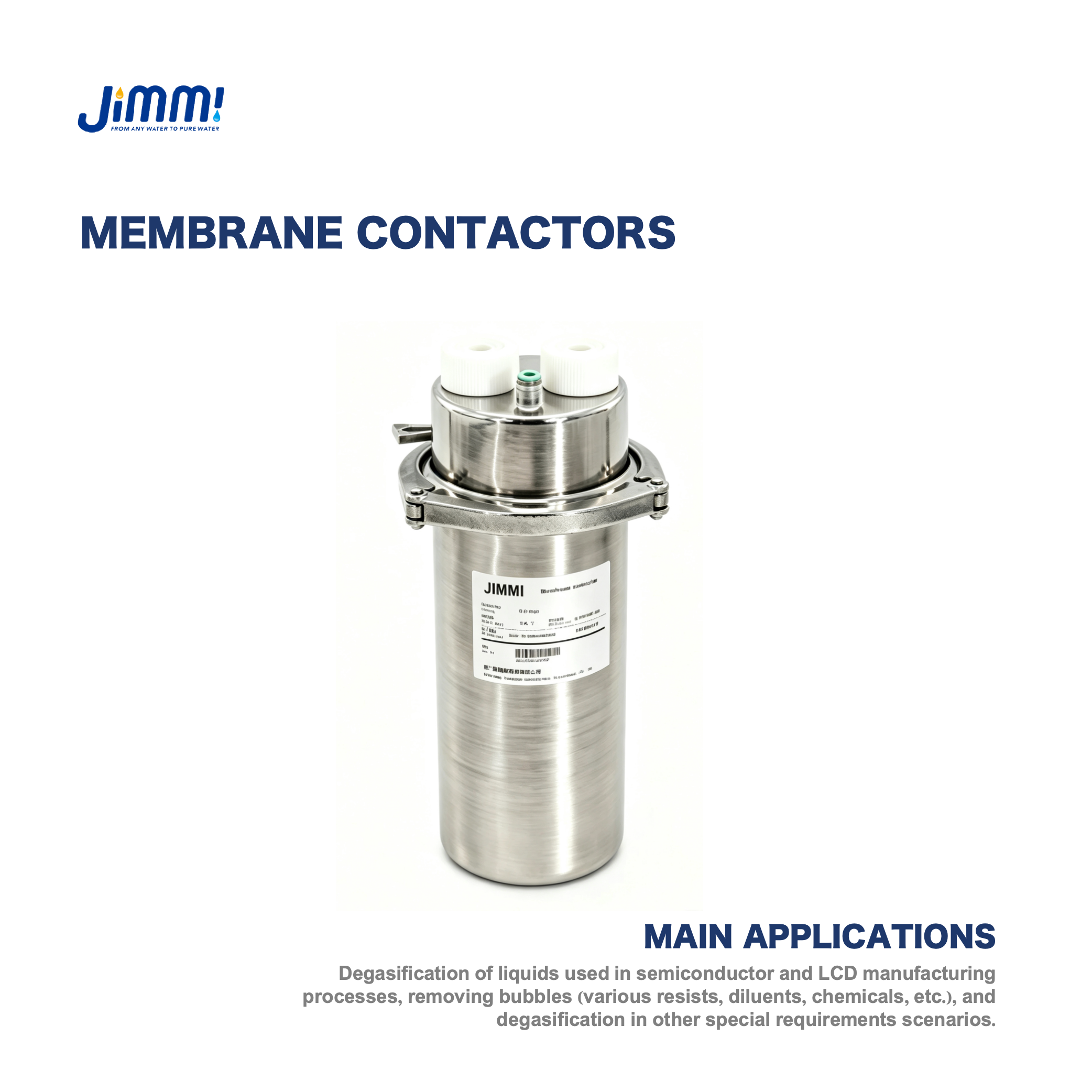

Physical hollow-fiber degassing (DO < 1 ppb) + 316L electropolished vessels (Ra < 0.4 µm, Tri-Clamp zero dead-leg).
  • ✓ Gas Degassing: Residual Dissolved Oxygen (DO) < 1 ppb and Dissolved CO2 < 1 ppm without chemical additions.

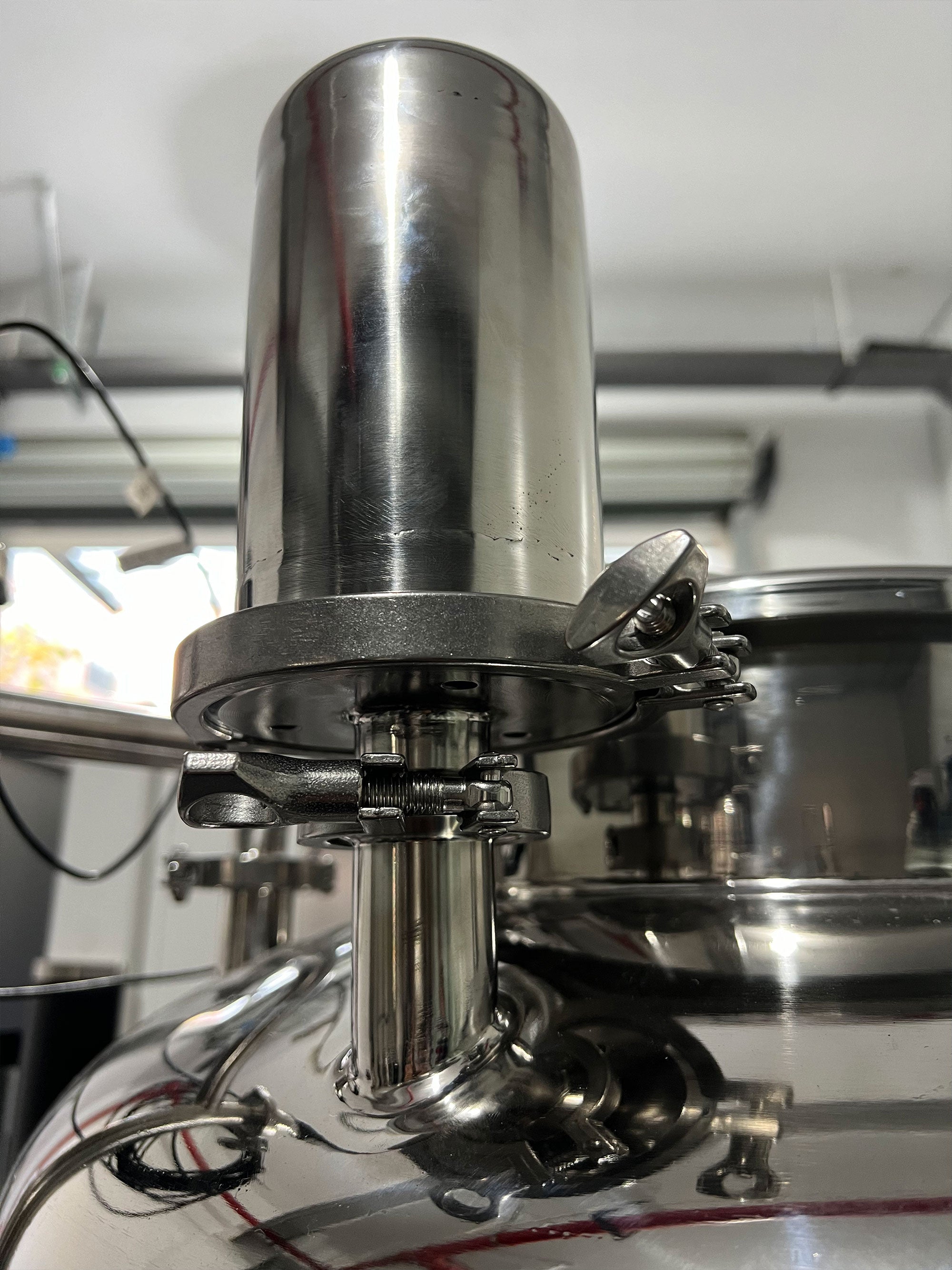

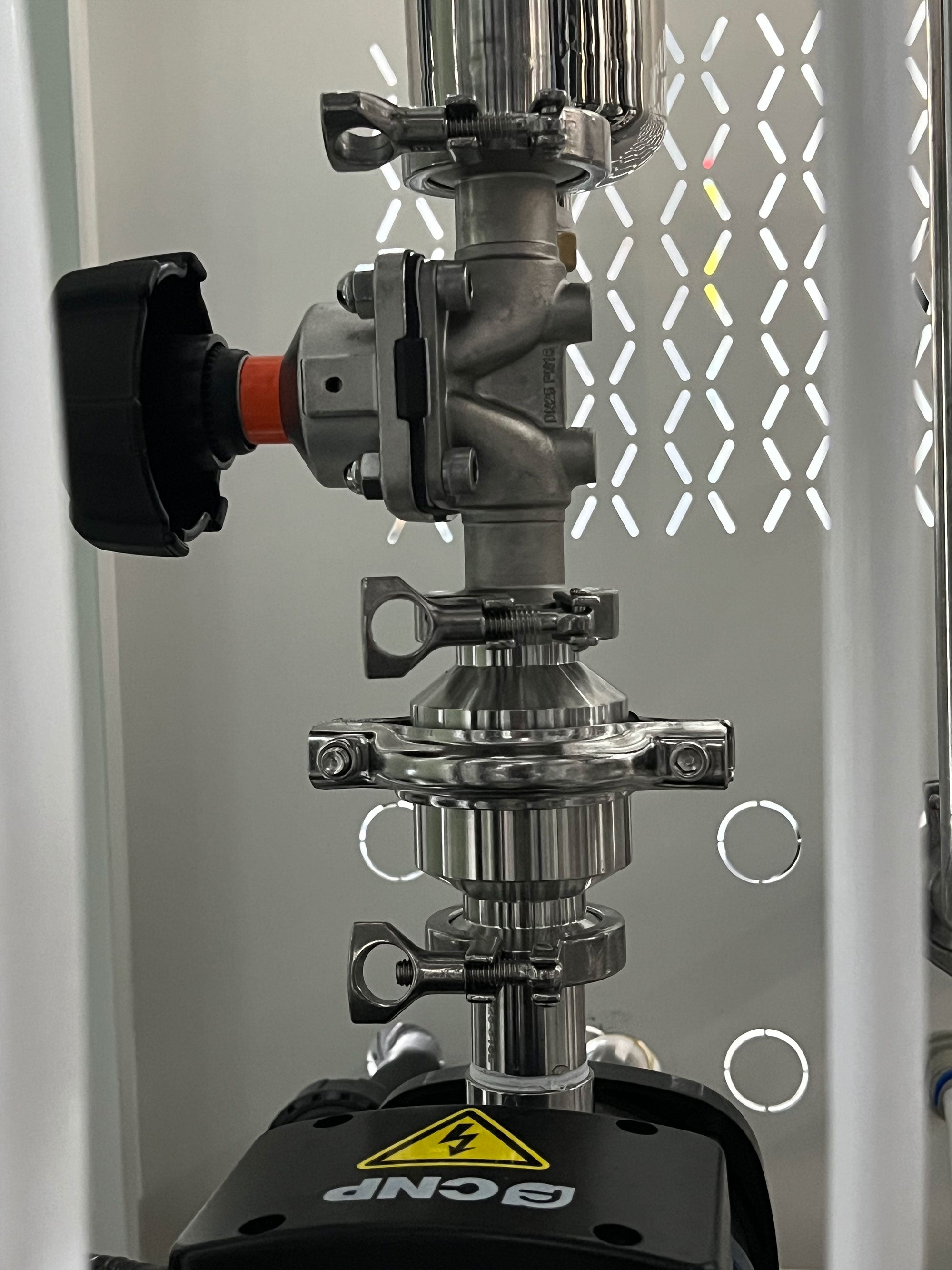

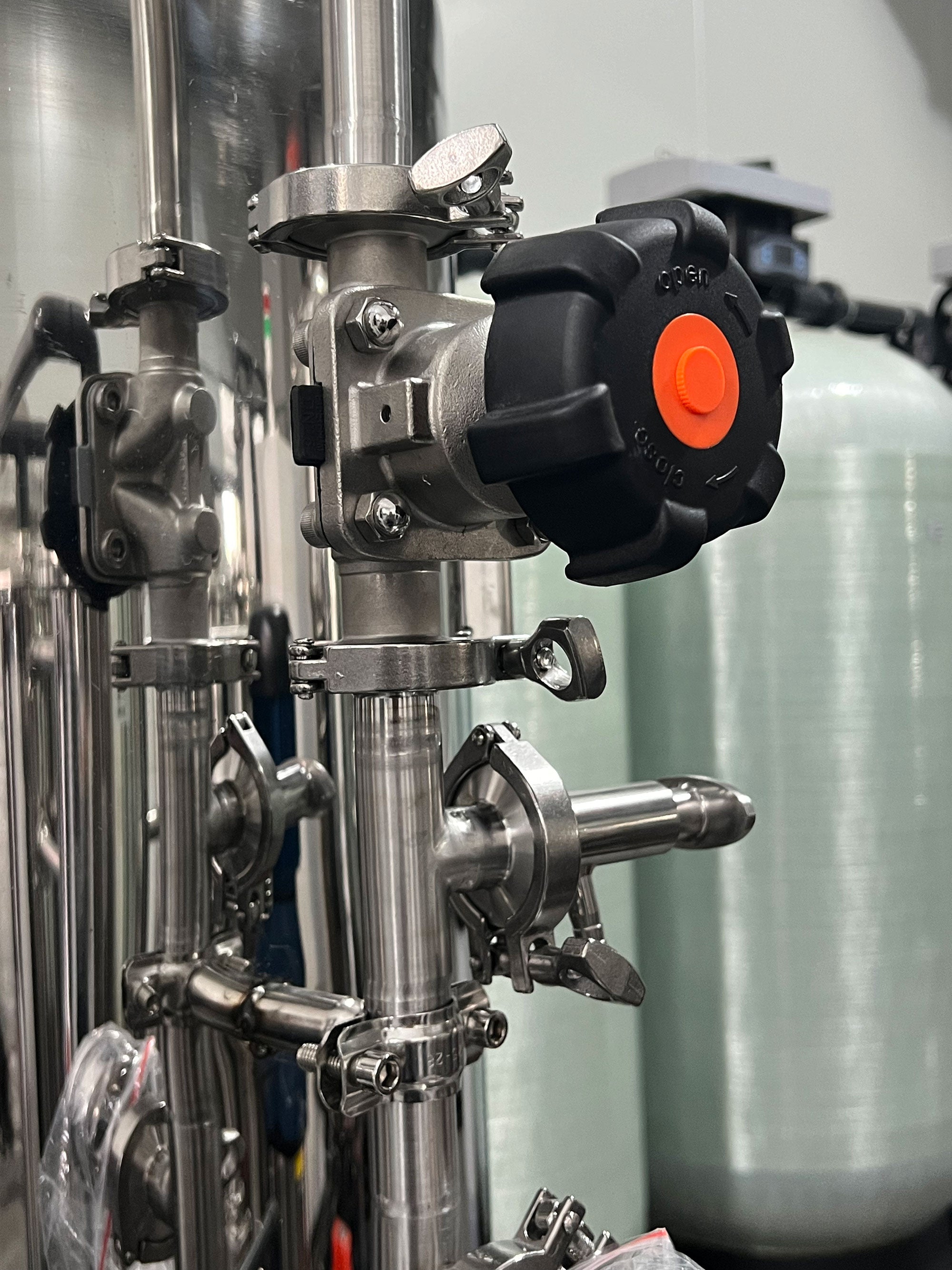

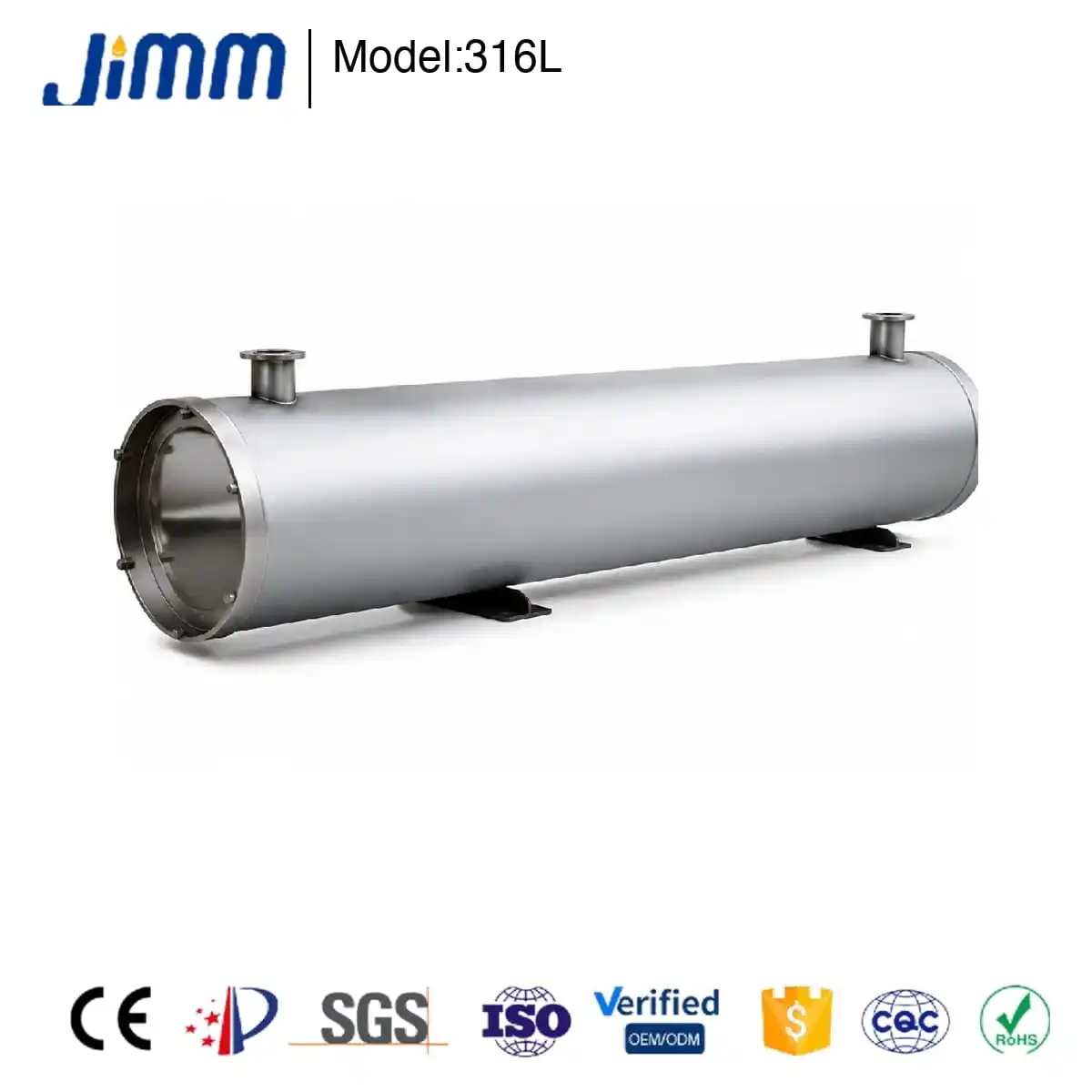

  • ✓ Sanitary 316L Vessels: Tri-Clamp connections, internal surface Ra < 0.4 µm (Electropolished), zero dead-leg design.
  • ✓ Bio-Pharma TFF: Polyethersulfone (PES) hollow fibers with 5kD/10kD/20kD cutoffs for pyrogen & virus removal.
  • ✓ Hot-Water Sanitizable CEDI: Chemical-free continuous deionization with 18.2 MΩ·cm resistivity, withstands 85°C thermal sanitization.
Compliance & Engineering Deliverables:
cGMP & USP Class VI Biological Reactivity · 3.1 Mill Test Reports (MTR) · CE Pressure Equipment Directive (PED) · 3D STEP/CAD Models Available
Request Technical Datasheet (TDS) & Specs →

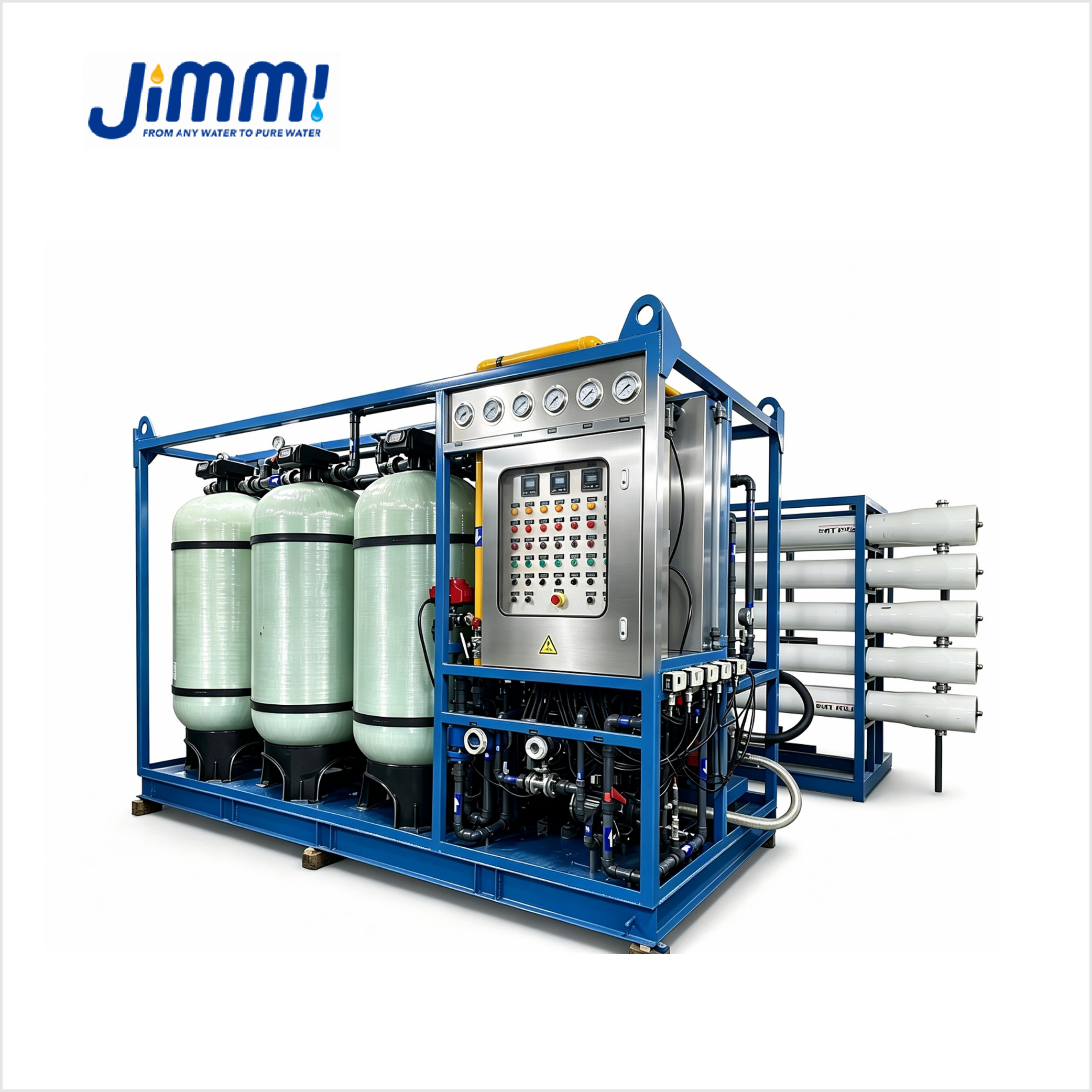

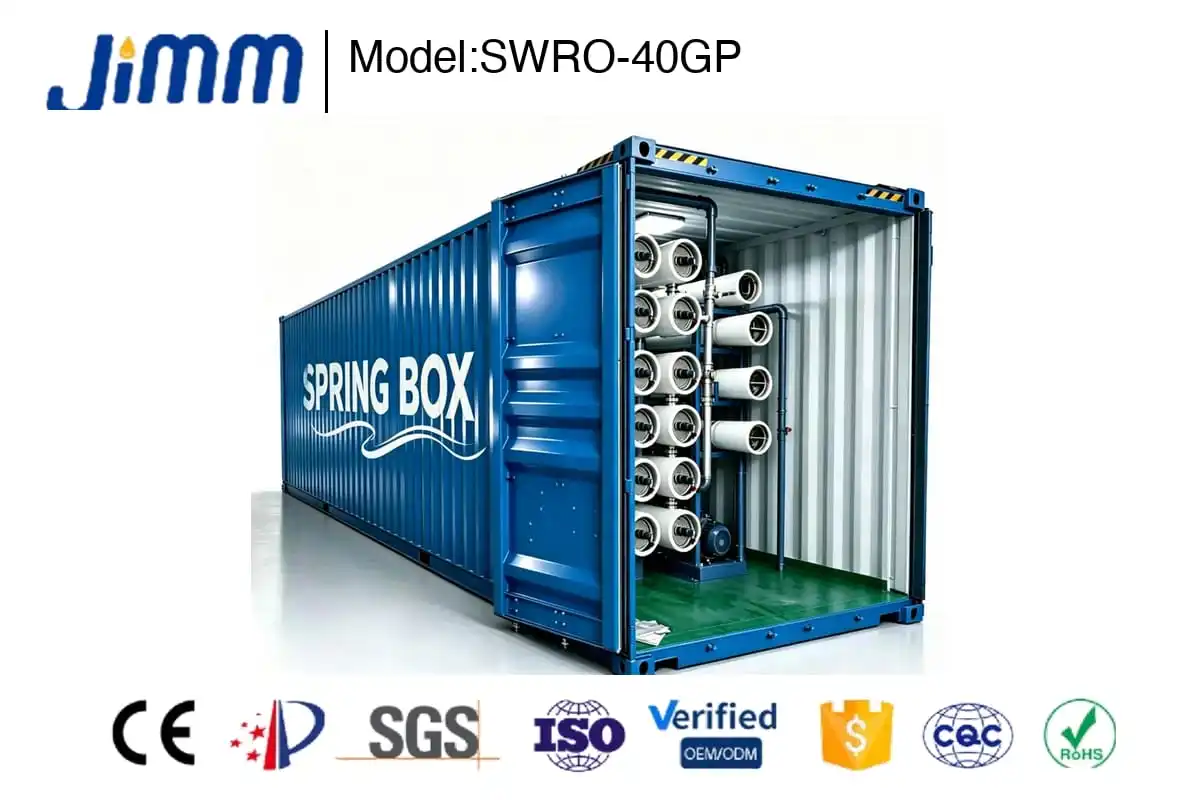

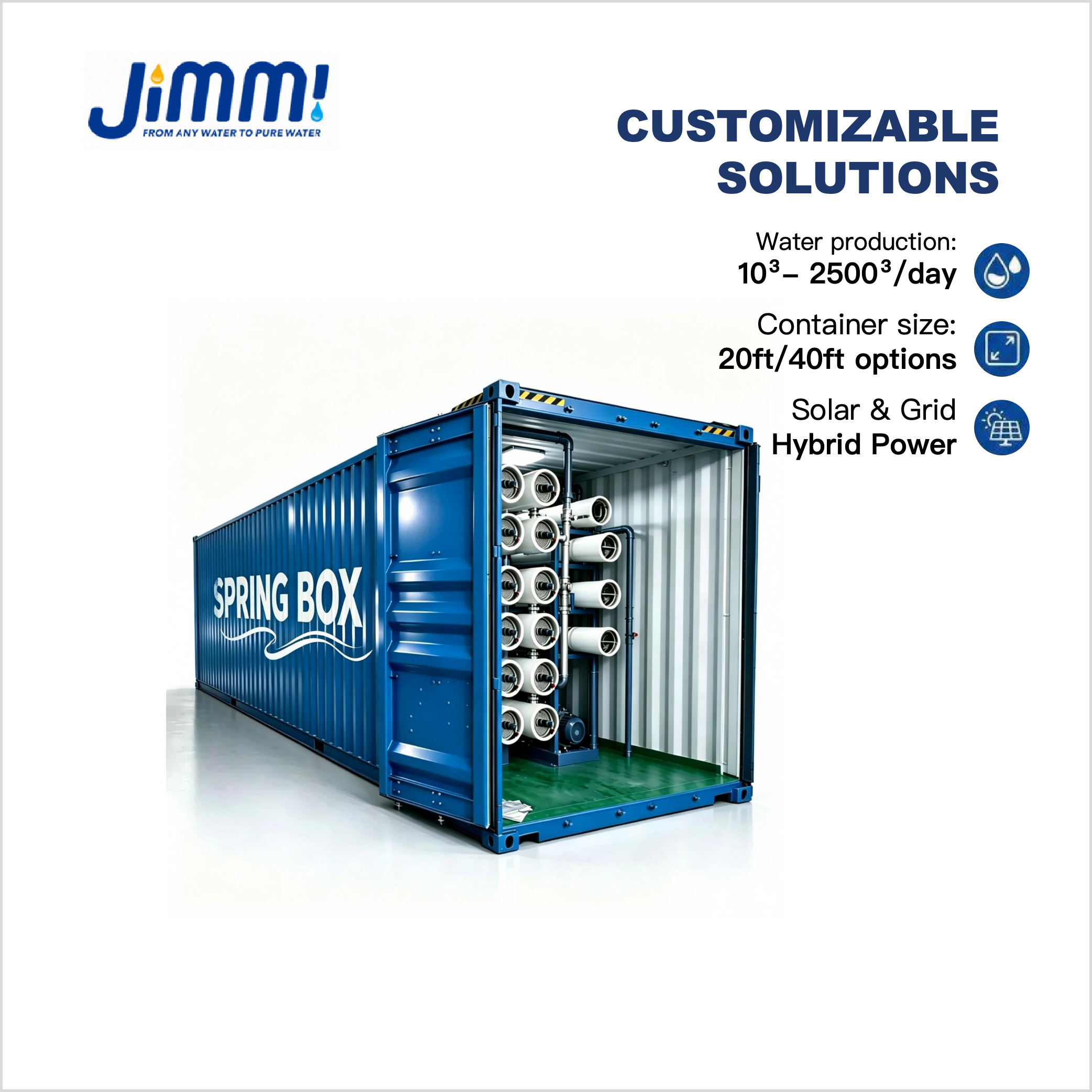

Containerized Solar Seawater Desalination Plant
Turnkey Infrastructure

Island Resorts, Municipal & Off-Grid Solar Desalination

Africa & Middle East Island Owners · Remote Mining & Camp Infrastructure · Government EPC Projects

Directly overcoming the grid outage crisis and remote water scarcity across Africa, the Middle East, and island archipelagos. Self-contained 20GP/40GP container stations engineered for rapid 48-hour plug-and-play commissioning.

❌ Common Industry Pain:
Volatile grids cause sudden plant shutdowns; loose parts take 4–8 weeks to assemble on-site with high labor costs.
✅ JIMMI Engineering Solution:
100% Zero-Grid solar PV + battery storage hybrid + 48-Hour plug-and-play containerized commissioning.
  • ✓ Zero-Grid Self-Sufficiency: Integrated Solar PV + Battery Storage with automatic hybrid diesel/grid failover.
  • ✓ Containerized Plug & Play: Standard 20GP/40GP containers pre-piped, pre-wired, and wet-tested before shipping; operational within 48h.
  • ✓ Tropicalized Heavy-Duty Build: Air-conditioned insulated ISO containers, Super Duplex 2507 high-pressure piping, and 1000 PSI FRP vessels.
  • ✓ Low Operating Cost: Integrated isobaric energy recovery turbine (ERI) reduces power consumption down to < 3.0 kWh/m³.
Turnkey Project Scope & Guarantees:
Capacity: 10 to 500 T/Day Modular · WHO Drinking Water Standard Output (< 300 ppm TDS) · Siemens PLC Remote Satellite IoT Monitoring · Factory Field Engineers Dispatched
Calculate Island / EPC Project Budget →

FAST GLOBAL DISPATCH · OEM REPLACEMENT PARTS

Fast Spare Parts & Consumables Catalog

Genuine components, precision EPDM seals, and replacement consumables with guaranteed factory compatibility. Tiered volume pricing on request.

Request Wholesale BOM Quote →
📋

Looking for specific part numbers or mixed container packing?

Send us your bill of materials (Excel, CSV, or PDF). Our technical team returns exact component matches and tiered factory volume pricing within 1 hour.

Upload BOM for Fast Quote
O-Ring Seal Kit
SKU: JIM-OOR-8040-HP

High-Pressure EPDM & Silicone O-Ring Seal Kit (Pack of 10)

Fits 8040 FRP Housings (300 / 450 / 600 / 1000 / 1200 PSI)

Volume Pricing on Request
Add to Quote List / Inquire
Bearing Plate End Cap
SKU: JIM-EC-8040-AL-ABS

Aluminum Alloy & ABS Bearing Plate / End Cap for 8040 FRP

Fits End Port & Side Port Pressure Vessels (All Lengths)

Volume Pricing on Request
Add to Quote List / Inquire
316L Tri-Clamps
SKU: JIM-TC-316L

316L Stainless Steel Tri-Clamp Clamps & Ferrule Adapters

1.5" / 2" / 2.5" / 3" Sanitary Piping Assemblies

Volume Pricing on Request
Add to Quote List / Inquire
Thrust Ring
SKU: JIM-TR-8040-PL

Industrial Plastic Thrust Ring & Adapters for 8040 Elements

Compatible with Dow FilmTec, Hydranautics & Toray Elements

Volume Pricing on Request
Add to Quote List / Inquire

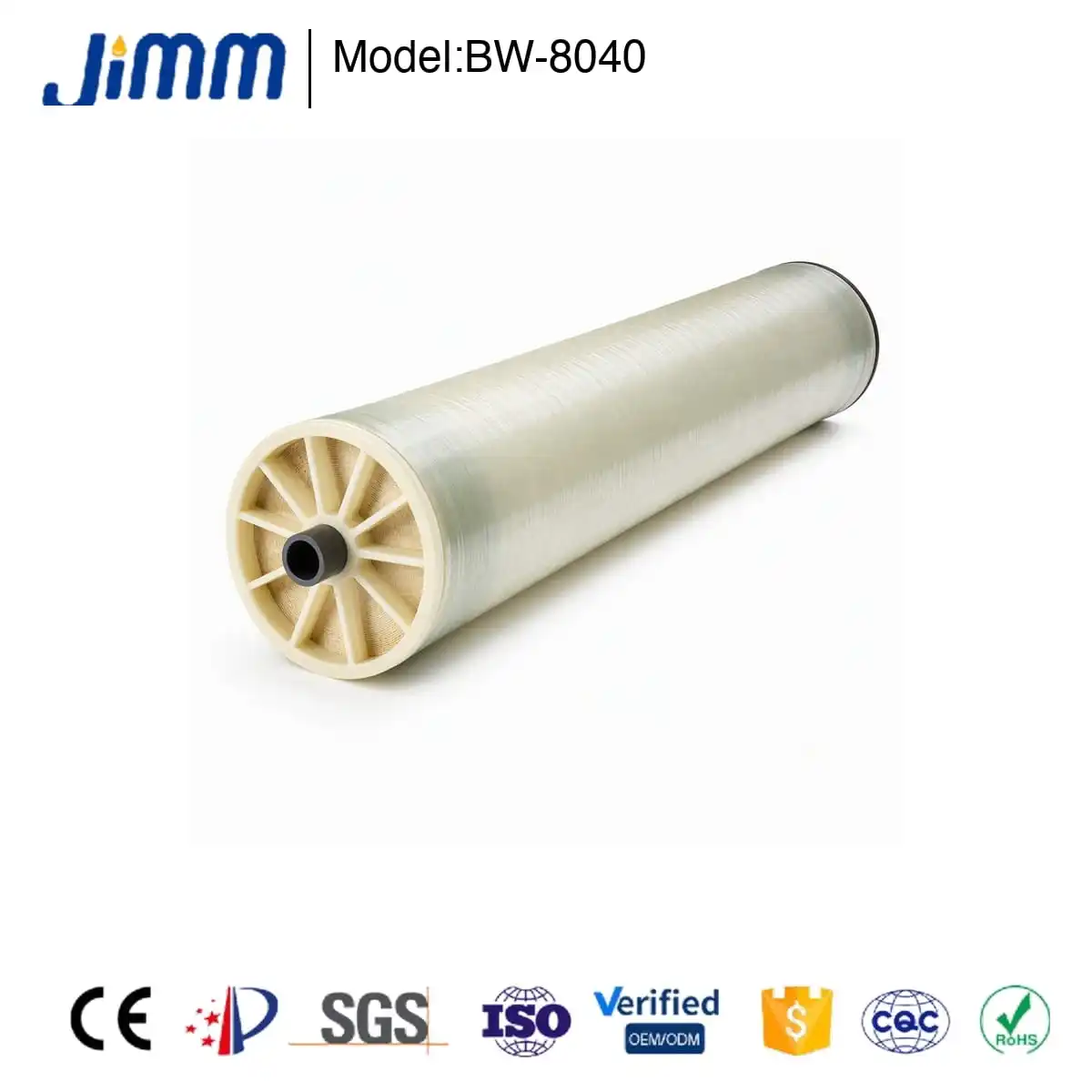

RO Membrane Element
SKU: JIM-RO-8040-HR

High-Rejection 8040 Industrial RO Membrane Element

BW-8040 & SW-8040 | 99.5% Rejection @ High Flux

Volume Pricing on Request
Add to Quote List / Inquire
Control Valves
SKU: JIM-VLV-AUTO-MP

Multiport Automatic Softener & Filter Control Valves

Runxin & Stager Electronic Multiport Systems for FRP Tanks

Volume Pricing on Request
Add to Quote List / Inquire

* All parts and consumables are sold on a B2B wholesale basis. No fixed retail markups — volume pricing and container packing options confirmed directly by our Hangzhou engineering desk.

CUSTOM ENGINEERING & TURNKEY EPC

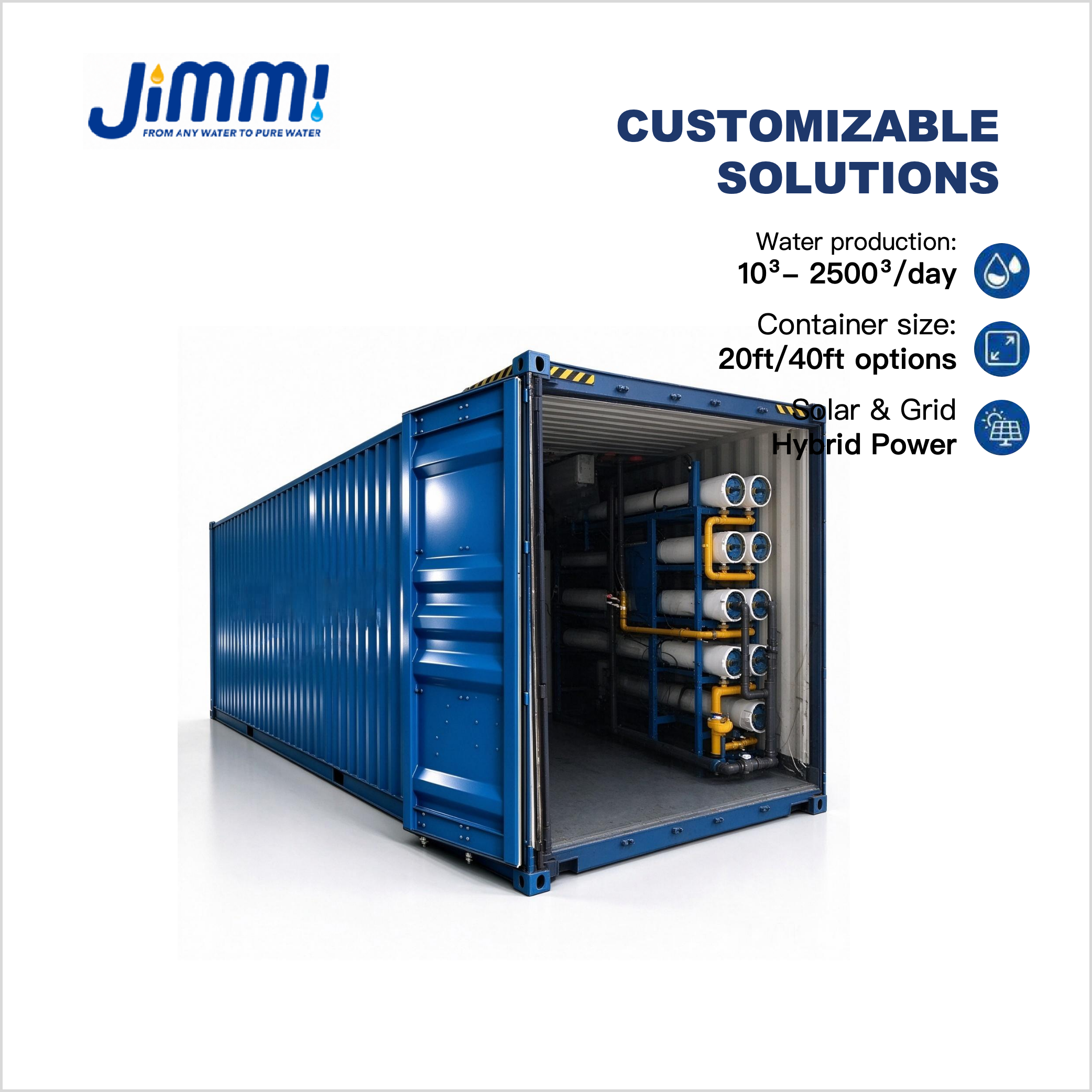

Turnkey Systems & Containerized Plants

Containerized SWRO, Solar-Powered RO (10-300 T/D), Ultrapure EDI & Degassing Modules. Full engineering & process design.

Request Engineering RFQ →

Every turnkey project starts with a free process review: feed water analysis, capacity sizing, footprint and layout drawings.
